100 GHz
Max Operating Frequency
-50 to 105°C
Temperature Range
0.04%
7-Day Moisture Absorption
4
Standard Configurations
Performance Built Into the Material
Inkbit's GRIN lenses are printed with graded dielectric properties encoded directly into the lattice geometry — no post-processing, no adhesives, no assembly.
Wideband Operation
Operational bandwidth extending to 100 GHz — covering X-band through V-band in a single passive optic with no tunable elements.
COT Polymer Material
Cyclic Olefin Thermoset provides 0.04% moisture absorption, consistent dielectric performance across humidity, and a −50 to 105°C thermal window.
Lattice Design
Diamond lattice for V-band precision. Gyroid lattice for thermomechanical robustness at X-band. Each topology engineered for its operating regime.
Industry Compliant
REACH and TSCA listed. Chemical resistance rated excellent against common solvents, oils, and water. Radome options available for field deployment.
Four Lens Variants Two Diameters, Two Lattice Types
Standard Configurations
All configurations use Cyclic Olefin Thermoset (COT) polymer and share the same thermal operating range. Lattice type and unit cell size determine the frequency ceiling.

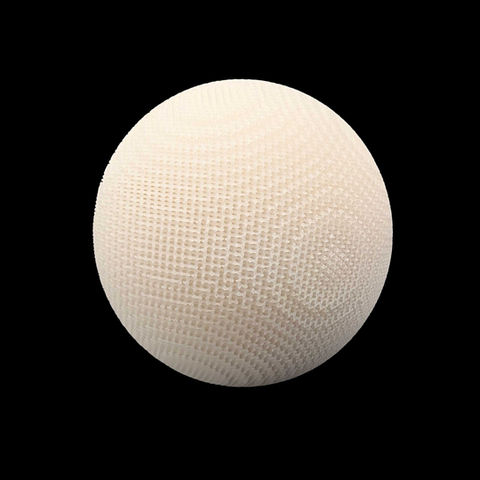

LUN-D-62-2
Diamond Luneburg Lens
62 mm Diameter
V-Band — High-frequency precision up to 100 GHz
Diameter
62 ± 1 mm
Lattice Type
Diamond
Unit Cell Size
2 mm
Max Frequency
100 GHz
Material
COT Polymer
LUN-D-100-2
Diamond Luneburg Lens
100 mm Diameter
V-Band — Larger aperture up to 100 GHz
Diameter
100 ± 2 mm
Lattice Type
Diamond
Unit Cell Size
2 mm
Max Frequency
100 GHz
Material
COT Polymer
LUN-G-62-5
Gyroid Luneburg Lens
62 mm Diameter
X-Band — Thermomechanical robustness up to 50 GHz
Diameter
62 ± 1 mm
Lattice Type
Gyroid
Unit Cell Size
5 mm
Max Frequency
50 GHz
Material
COT Polymer
LUN-G-100-5
Gyroid Luneburg Lens
100 mm Diameter
X-Band — Large aperture with structural robustness
Diameter
100 ± 2 mm
Lattice Type
Gyroid
Unit Cell Size
5 mm
Max Frequency
50 GHz
Material
COT Polymer
LUN-D-62-2
Diamond Luneburg Lens
62 mm Diameter
V-Band — High-frequency precision up to 100 GHz
Diameter | 62 ± 1 mm |
Lattice Type | Diamond |
Unit Cell Size | 2 mm |
Max Frequency | 100 GHz |
Material | COT Polymer |

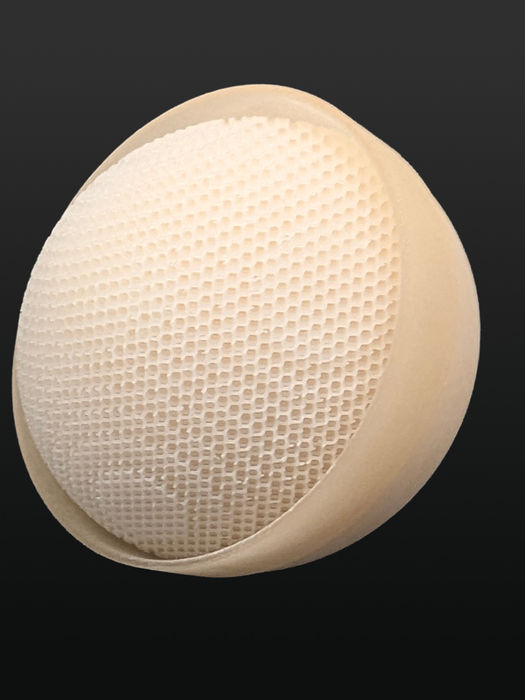

RAD-62-R
Radome
62 mm Inner Diameter
Gain Reduction < 0.5 dBi
Dimensions
67 × 67 × 63.2 mm
Weight
6.3 g
Shell Thickness
0.5 mm
Compatible Lens
LUN-D-62-2 / LUN-G-62-5
RAD-100-R
Radome
100 mm Inner Diameter
Gain Reduction < 0.5 dBi
Dimensions
105 × 105 × 101.2 mm
Weight
15.6 g
Shell Thickness
0.5 mm
Compatible Lens
LUN-D-100-2 / LUN-G-100-5
Applications
From Ground Stations to UAV Systems
Inkbit's Luneburg lenses serve as passive, wideband RF optics across sensing, communications, and research applications requiring precise beam control in a compact form factor.
Automotive & Industrial Sensing
High-bandwidth radar sensing for ADAS, LiDAR-free object detection, and industrial automation at mmWave frequencies.
Satellite Ground Stations
Wideband bidirectional Tx/Rx for LEO and GEO satellite uplink/downlink, point-to-point backhaul, and terminal tracking.
UAV / UAS Communication
Lightweight passive optics for drone-to-ground and drone-to-drone RF links requiring wide angular coverage and compact packaging.
Phased-Array Radar Augmentation
Passive beam-forming augmentation for phased-array systems requiring gain enhancement.
Telecom Point-to-Point Backhaul
Fixed wireless backhaul links operating in licensed mmWave spectrum, where passive directivity and low profile are critical.
Direction Finding & Research
Antenna range measurement, RCS calibration, and precision direction-finding research requiring a stable, wideband passive reference.
